Project Name

The Tranquil Valley Development

The Tranquil Valley Development project exemplifies the intricate balance between modern infrastructure development and ecological preservation. Spanning a vast area of 142 acres and comprising 299 lots with a construction density of 2.0 dwelling units per acre, this project is characterized by its flat terrain and significant wetland areas. The primary objective is to achieve a balanced volume and effective drainage while adhering to environmental regulations and preserving natural features.

299

lots

142

arces

successful civil outsourcing project

Project Vision and Challenges

Situated in Onslow County, the The Tranquil Valley Development aims to create a sustainable residential community that integrates seamlessly with its flat terrain and surrounding wetlands. The project’s flat terrain and extensive wetland areas present unique challenges in stormwater and sewage drainage as well as road profile design.

Civil Engineering Outsourcing Abstract digital artwork showcases a network of neon lines in yellow, green, and purple against a black backdrop. These lines create intricate, maze-like designs that symbolize the complexity involved in outsourcing for civil engineering projects. The bottom of the piece displays the name AXA Engineers Engineering.

Flat Terrain Drainage

The natural flatness of the terrain makes it difficult to implement a gravity-fed drainage system for stormwater and sewage.

Civil Engineering Outsourcing A digital map set against a black background displays outlined plots and vibrant road networks. The text AXA Engineers appears at the bottom, emphasizing its expertise in civil engineering outsourcing. A prominent diagonal line and colored boundaries enrich the maps intricate design.

Wetlands and Weak Soil

A significant portion of the project area consists of wetlands and weak soil. These natural features need to be preserved and protected, posing considerable challenges in designing road profiles and layouts.

Project Solutions

To address these challenges, AXA Engineers has crafted innovative and ecologically sensitive solutions:

The image highlights the number one in a bold, orange font with two white daisy flowers—one at the top and one at the bottom—symbolizing Mitchell Mill Developments commitment to sustainable infrastructure design.

Stormwater Drainage Solution

The Approach: We propose a road cross-section design with ditches on both sides to collect rainwater, supplemented by culverts to channel water to natural discharge points. This reduces embankment height over pipes compared to a traditional gravity-fed drainage system, ensuring effective water management while preserving the flat terrain.

The number 2 is styled in brown with two orange, daisy-like flowers attached—one on the upper left and another on the middle right, symbolizing growth in infrastructure design. The background is transparent.

Precise Earthwork Balancing

The Approach: For the sanitary sewer system, we will employ a pressurized pump station system. This system will push water from within the project to the existing sanitary sewer drainage system, overcoming the limitations posed by the flat terrain and ensuring efficient wastewater management.

The number three in pink, adorned with a white daisy on its right side, symbolizes the innovative approach of Mitchell Mill Development, reflecting their commitment to sustainable infrastructure design.

Wetland Impact Mitigation

The Approach: To protect the wetlands, retaining walls will be avoided. Instead, lots will be graded with a front-to-back slope, aligning with the natural rear elevation. This design preserves natural drainage by directing stormwater accordingly. Road profiles will be determined based on the slopes and elevation differences in the cross-sections.

case study

Achieving Sustainable and Functional Design

The Tranquil Valley Development project is a testament to AXA Engineers’ commitment to sustainable and functional design. By addressing the unique challenges posed by the flat terrain and extensive wetlands, we ensure that the development not only meets high standards of engineering excellence but also prioritizes environmental preservation.

Our work

The Tranquil Valley Development

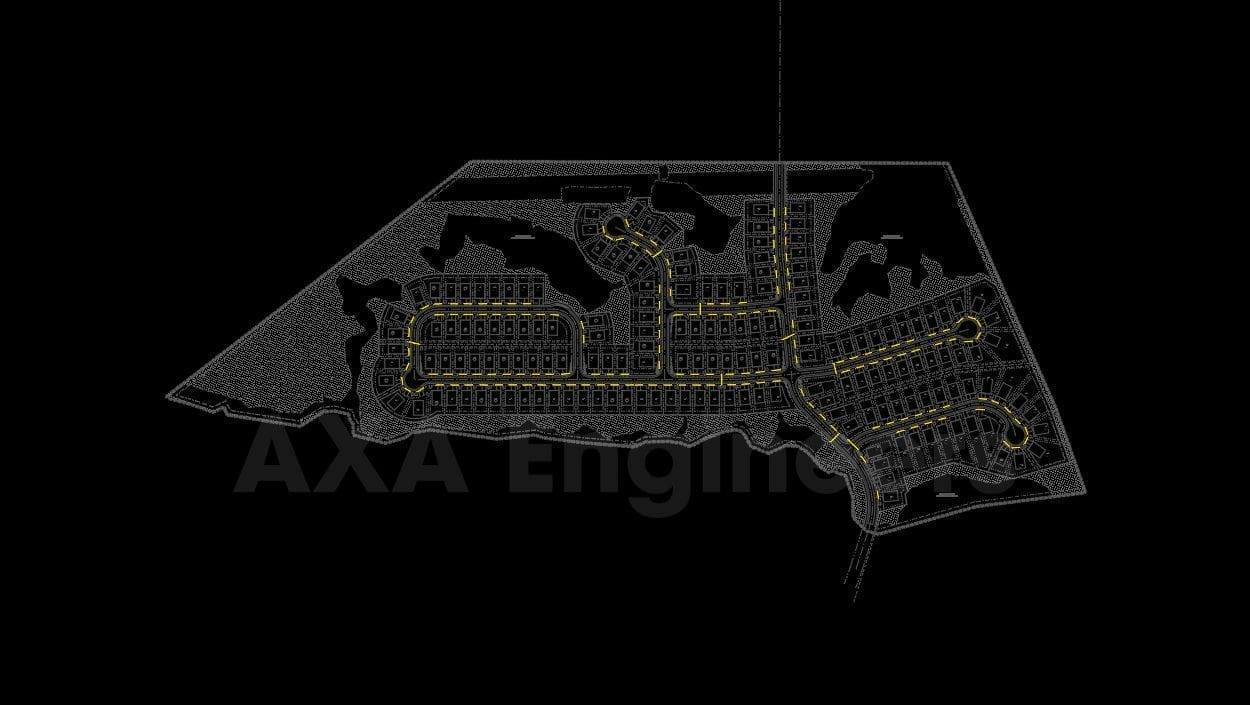

Civil Engineering Outsourcing Displayed on a black background, an intricate engineering diagram highlights street layouts with roads in bright yellow, arranged in a grid-like pattern of rectangular plots and circular areas. Labeled AXA Engineers Engineering, the diagram exemplifies the accuracy and expertise that outsourcing civil engineering services can provide for urban design projects.

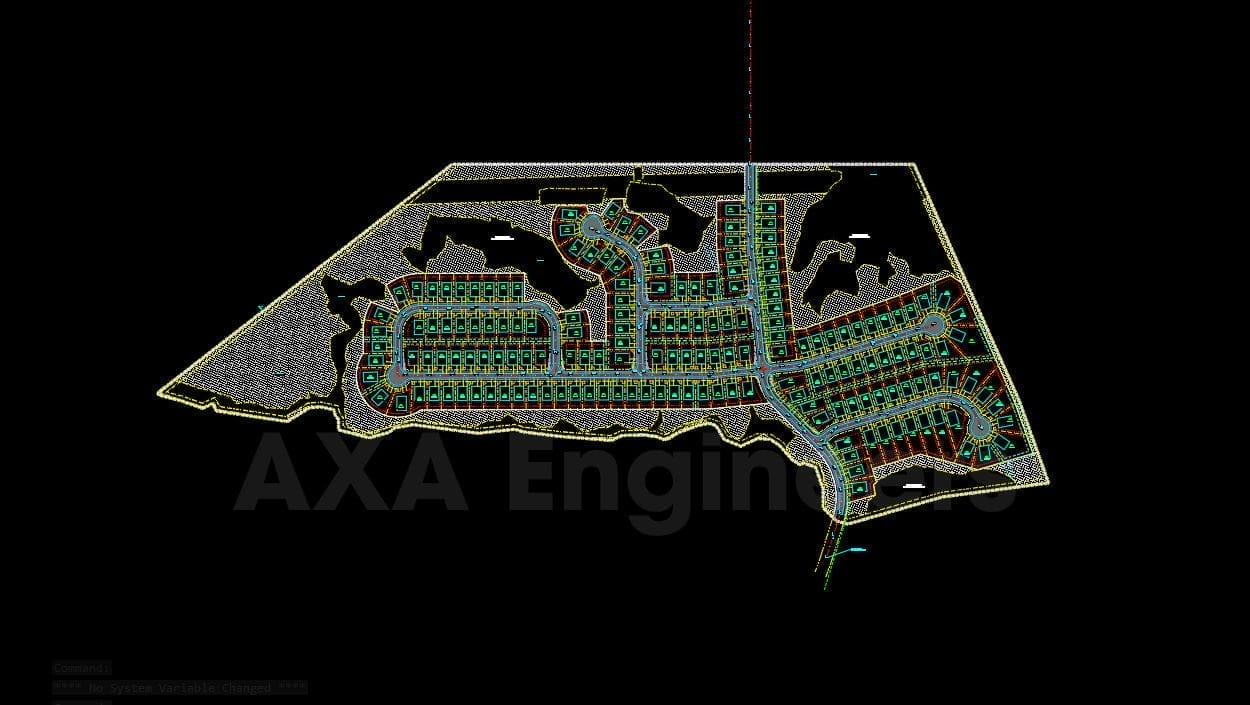

A detailed aerial view of the planned Tranquil Valley Development residential area reveals a grid of streets and numerous lots. The layout, set against a black background with colored lines for roads and boundaries, highlights the expertise of AXA Engineers Engineering in overcoming terrain challenges.

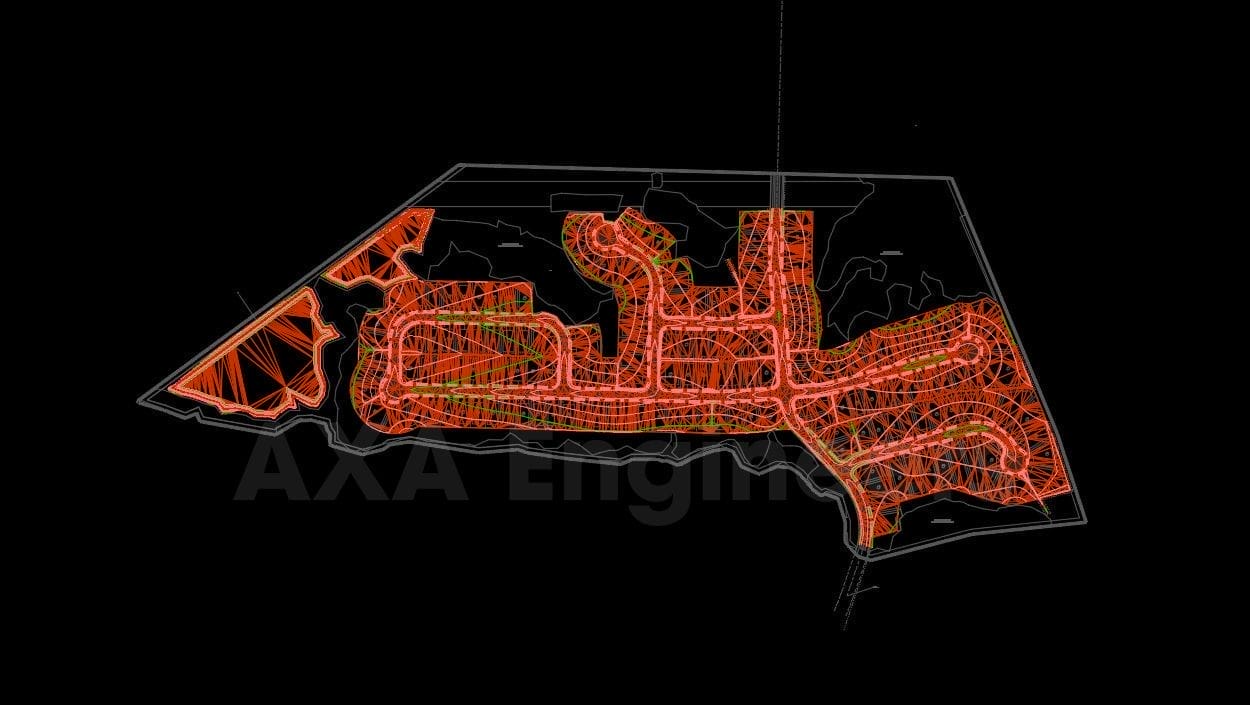

Topographical map with red and yellow lines on a black background, showcasing a detailed and intricate street layout of Tranquil Valley Development. The map includes curves and straight segments, suggesting a complex urban design amidst potential environmental challenges. Text ΑΧΑ Engineers is visible.

Abstract digital map with blue lines and shapes on a black background, resembling topographical or urban design elements. Faintly visible overlaid is XYZ Engineers, reflecting development strategies amidst environmental challenges faced by the tranquil valley.

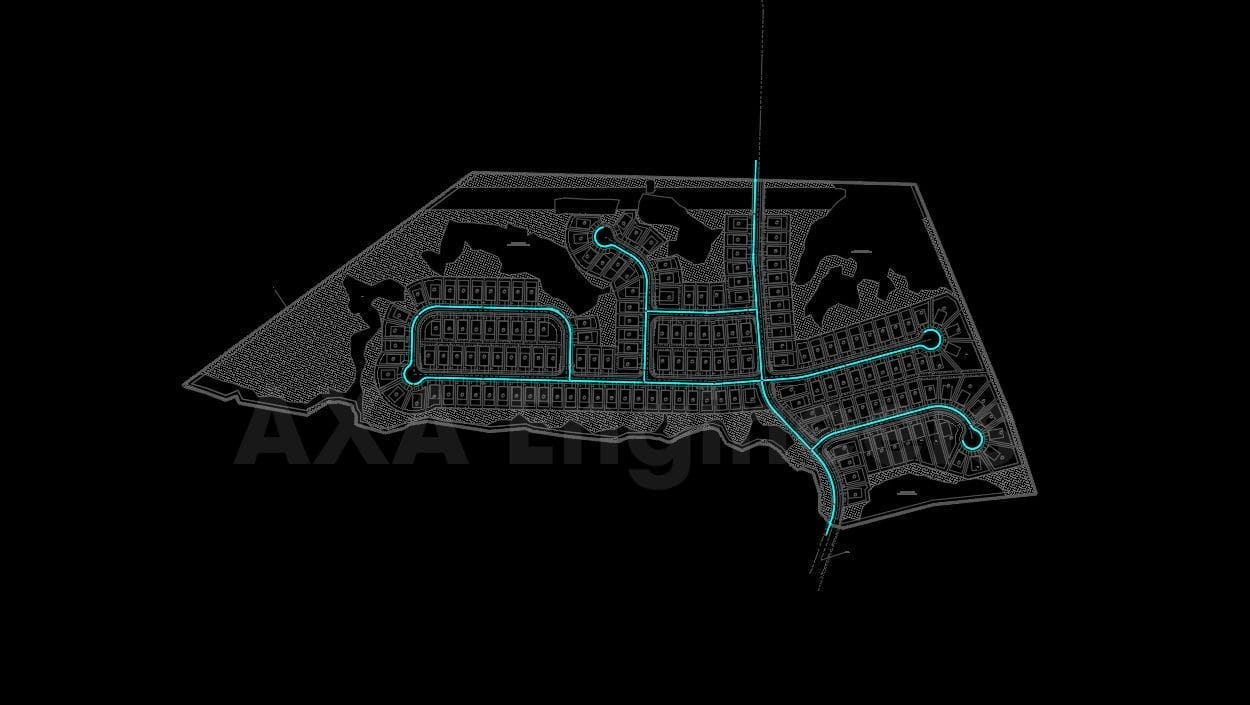

A black and white map of Tranquil Valley Development showcases the neighborhood layout with roads and house plots. Curved and straight streets, highlighted in blue, form a grid-like pattern against the black background, elegantly navigating terrain challenges.

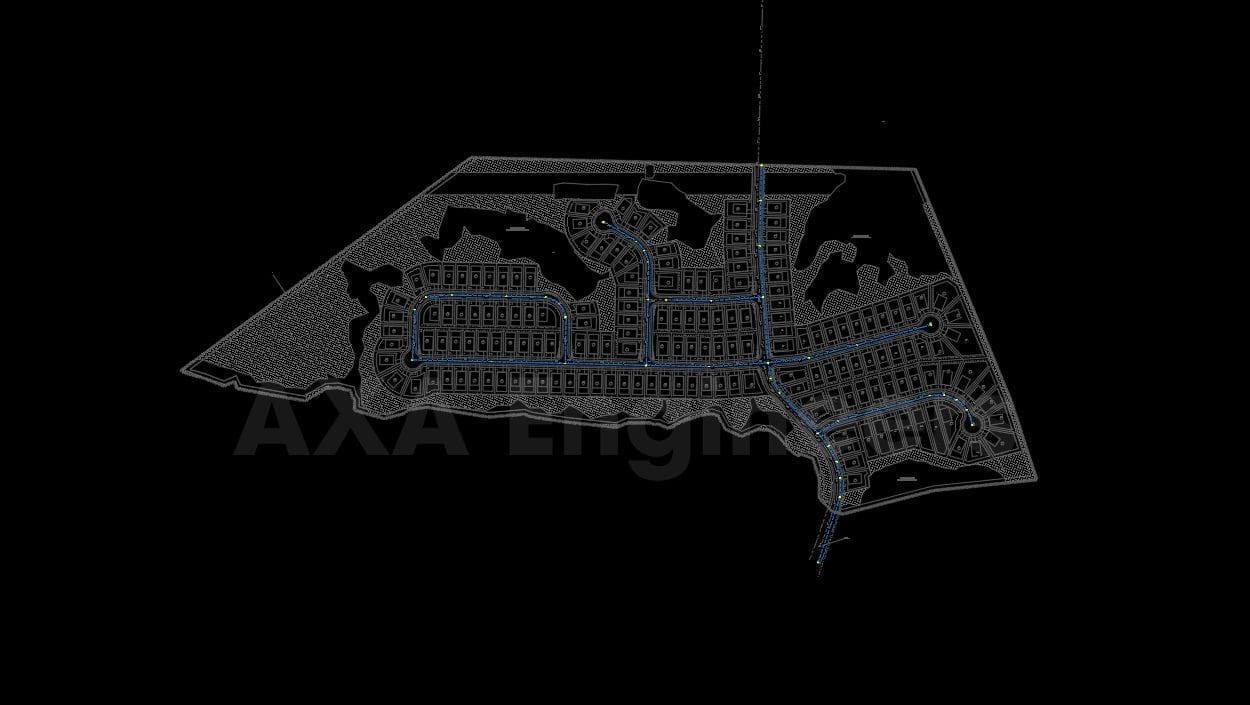

Civil Engineering Outsourcing Set against a dark background, the detailed blueprint of a residential area is prominently displayed. The layout, highlighted with blue details, showcases roads, building plots, and infrastructure lines. This carefully crafted design exemplifies the success of outsourcing in civil engineering, illustrating a well-organized community plan.

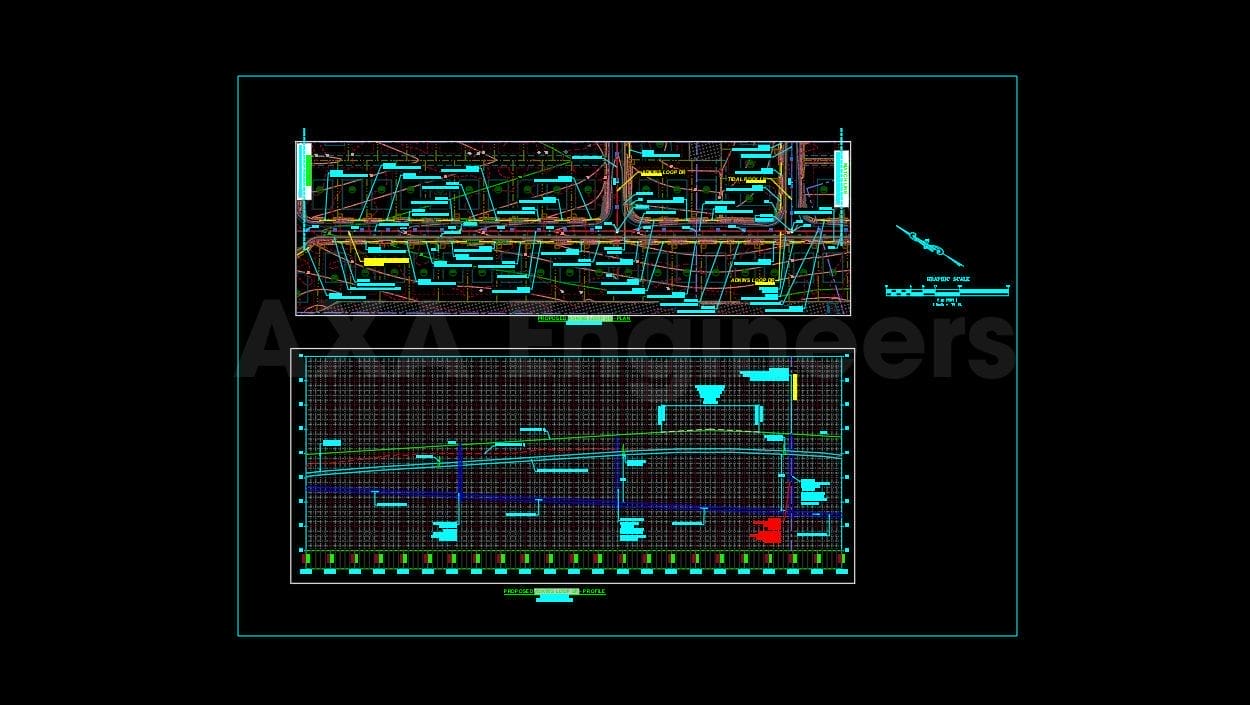

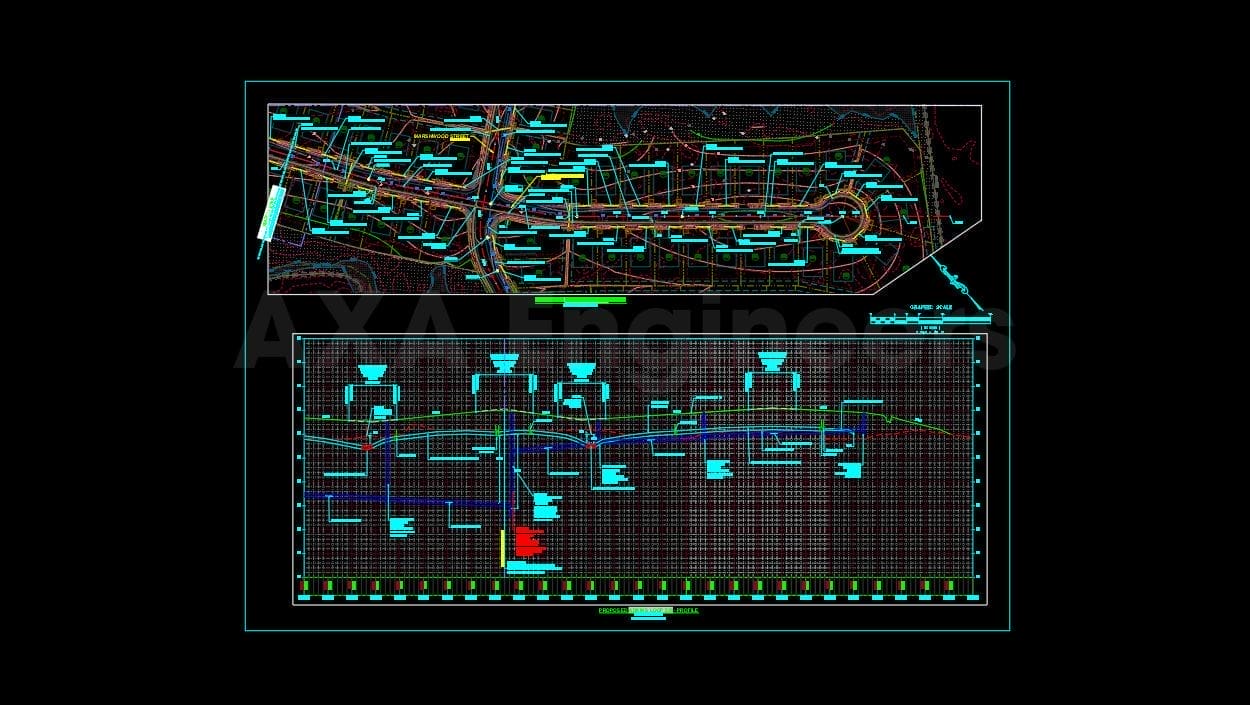

Civil Engineering Outsourcing Technical engineering diagram with intricate lines, shapes, and labels in a variety of colors against a black background, showcasing both vertical and horizontal grids. This detailed illustration is perfectly suited for civil engineering outsourcing requirements. The background features a subtle watermark text.

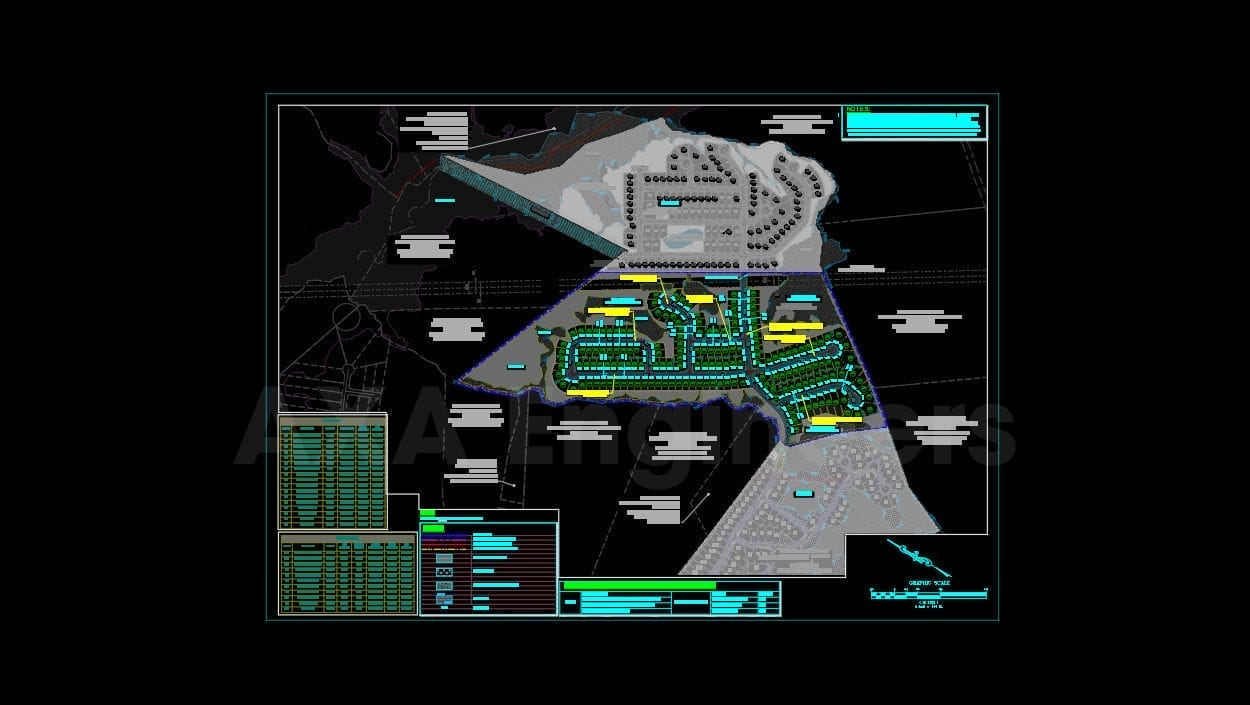

Civil Engineering Outsourcing A dark-themed architectural blueprint, ideal for outsourcing in civil engineering, features a comprehensive layout of a housing development. Different sections are accented in blue, green, and yellow with detailed annotations. Roads and legends are seamlessly integrated into the design, while text and numerical data are neatly aligned on the sides.

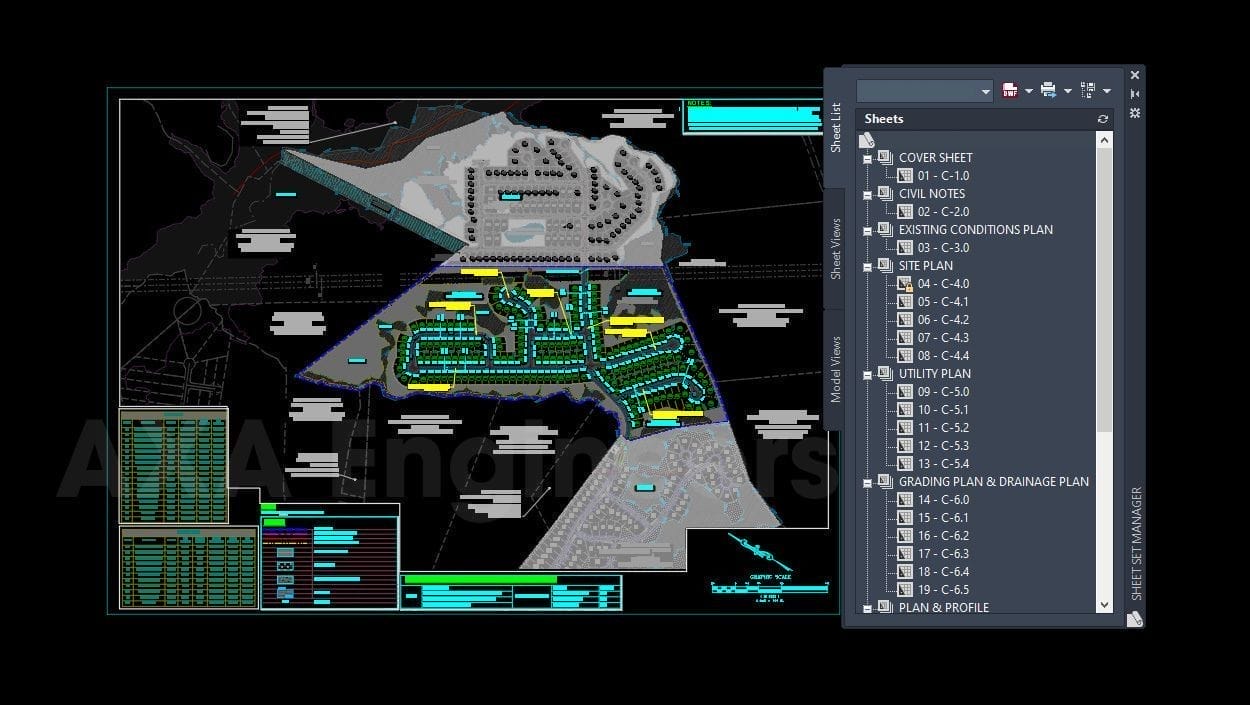

Civil Engineering Outsourcing A computer-aided design (CAD) interface showcases a comprehensive development plan layout, specifically designed for outsourcing in civil engineering. It includes labeled sections, an array of tools, and a list of sheet names and codes on the right side.

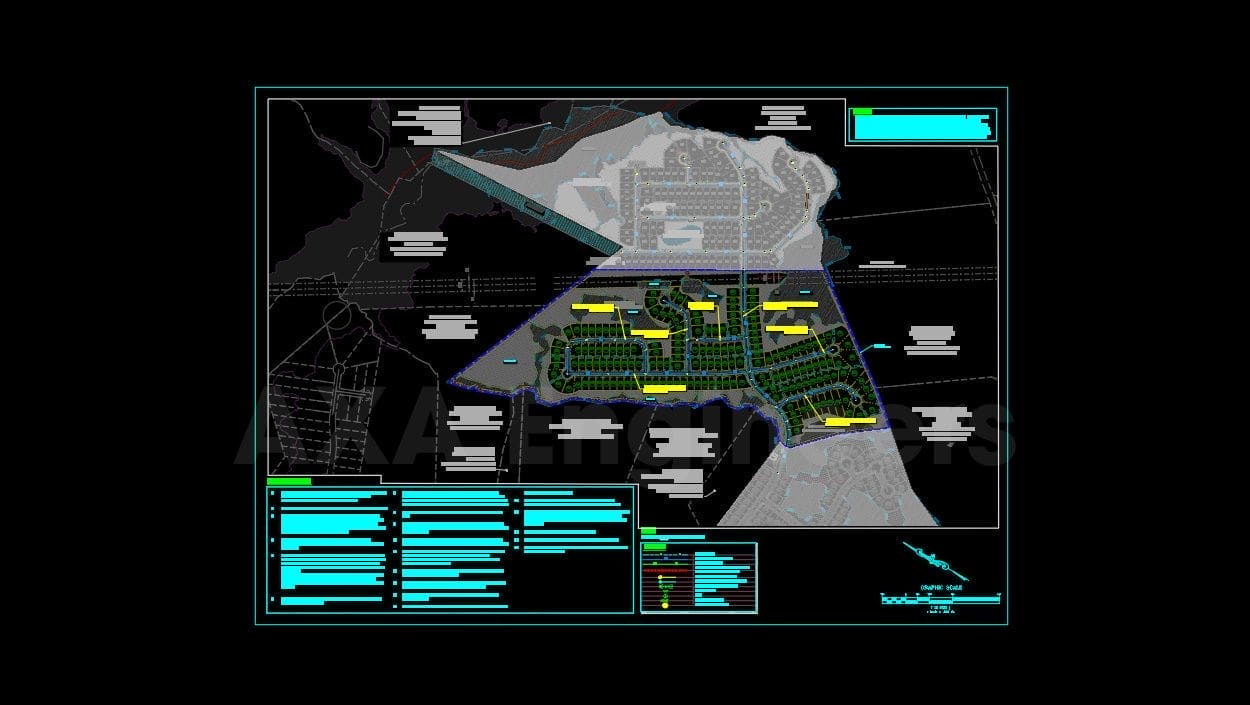

Civil Engineering Outsourcing A blueprint design illustrating a residential layout complete with streets, housing plots, and highlighted pathways is presented. Marked with grid lines and colored annotations on a black background, this meticulous plan exemplifies the precision achieved through civil engineering outsourcing, as demonstrated by its detailed legend.

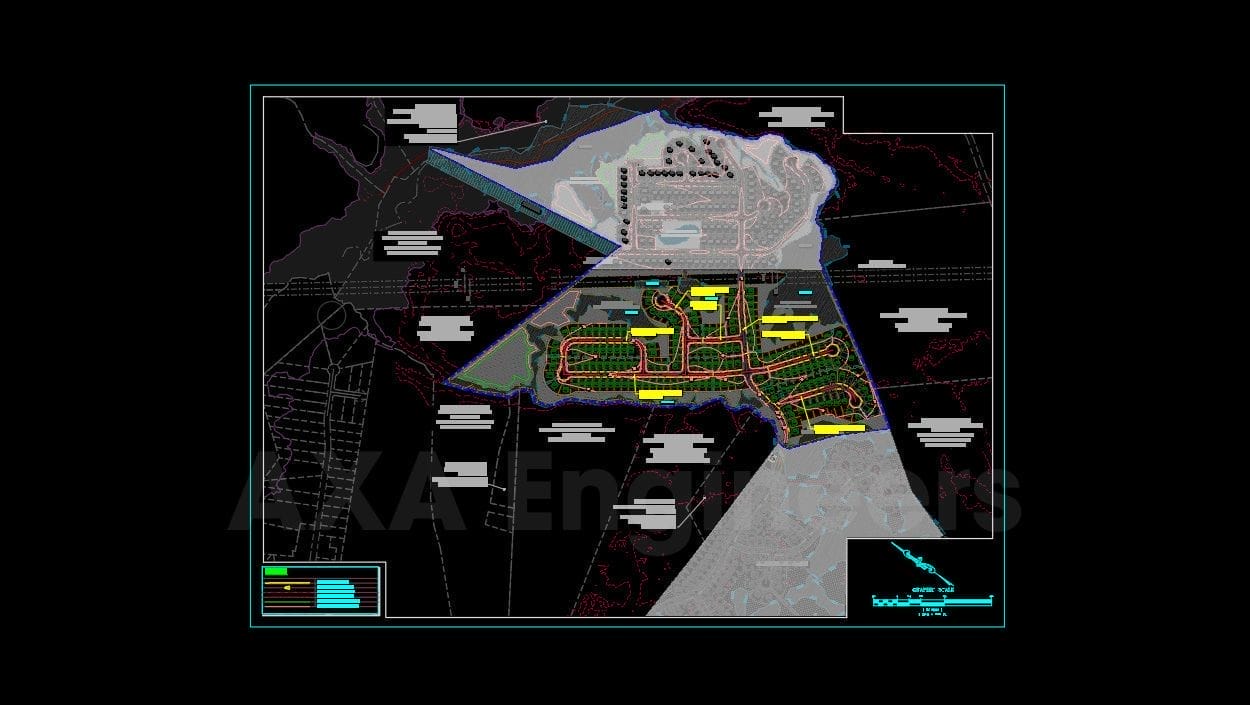

Civil Engineering Outsourcing A comprehensive engineering site plan featuring vibrant outlines and labels highlights the precision of civil engineering outsourcing. This map incorporates roads, plots, and contour lines with shaded areas, while text and diagrams are strategically placed around the plan layout, all presented against a dark background.
